OpenWrt OpenVPN Server安裝

運行環境

• OpenWrt 21.02.3

安裝套件

opkg update
opkg install openvpn-openssl openvpn-easy-rsa
opkg install luci-app-openvpn
#web介面管理

# Configuration parameters
OVPN_PKI="/etc/easy-rsa/pki"
export EASYRSA_PKI="${OVPN_PKI}"
export EASYRSA_REQ_CN="ovpnca"
export EASYRSA_BATCH="1"
# Remove and re-initialize the PKI directory
easyrsa init-pki
# Generate DH parameters
easyrsa gen-dh
# Create a new CA
easyrsa build-ca nopass
# Generate a key pair and sign locally for a server
easyrsa build-server-full server nopass
# Generate a key pair and sign locally for a client
easyrsa build-client-full client nopass
# Generate TLS PSK
openvpn --genkey --secret ${OVPN_PKI}/tc.pem

設定

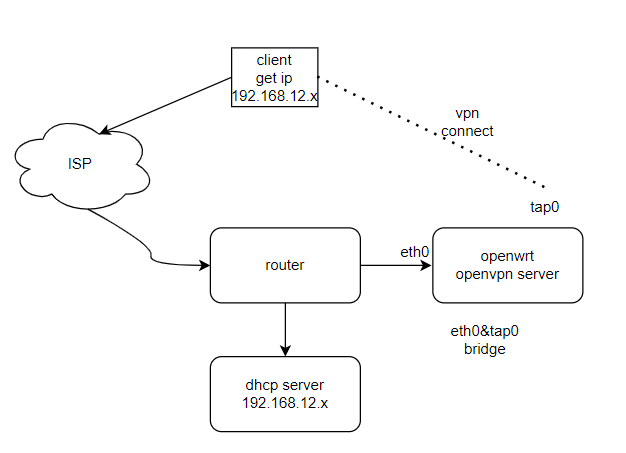

新增server設定，這裡使用tap bridge為範例，編輯/etc/config/openvpn

config openvpn 'vpntap'
        option enable '1'
        option proto 'udp'
        option dev 'tap0'
        option ca '/etc/easy-rsa/pki/ca.crt'
        option cert '/etc/easy-rsa/pki/issued/server.crt'
        option key '/etc/easy-rsa/pki/private/server.key'
        option dh '/etc/easy-rsa/pki/dh.pem'
        option tls_auth '/etc/easy-rsa/pki/tc.pem 0'
        option tls_server '1'
        option keepalive '10 120'
        option comp_lzo 'adaptive'
        option persist_key '1'
        option persist_tun '1'
        option status '/tmp/openvpn-status.log'
        option verb '3'
        option server_bridge ' '
        option port '12975'
        option duplicate_cn '1'   <<允許多個client

/etc/init.d/openvpn restart

client config設定

client
dev tap
proto udp
remote <remote ip> 12975
remote-cert-tls server
nobind
comp-lzo
persist-key
persist-tun
verb 3
key-direction 1
tls-client
<ca>
放置 /etc/easy-rsa/pki/ca.crt
</ca>
<cert>
放置 etc/easy-rsa/pki/issued/client.crt
</cert>
<key>
放置 /etc/easy-rsa/pki/private/client.key
</key>
<tls-auth>
放置 /etc/easy-rsa/pki/tc.pem
</tls-auth>

於openwrt web介面選擇橋接裝置，將橋接裝置新增tap0介面即完成
